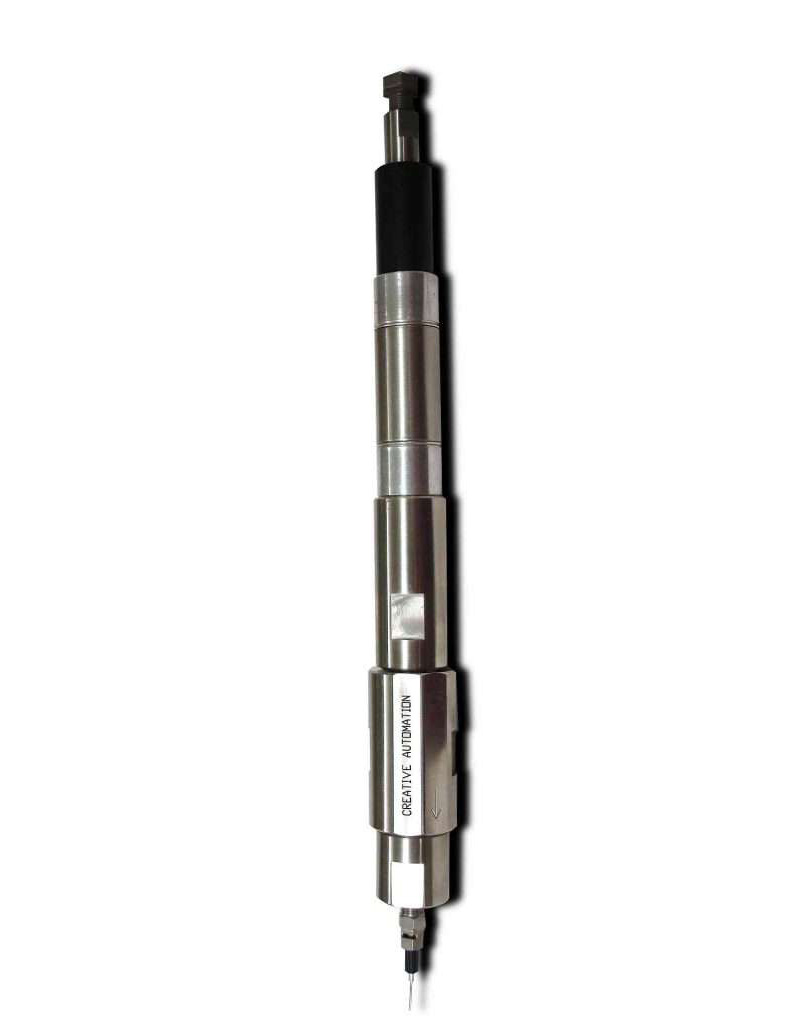

The LV-1 Positive Displacement Dispense Pump features Creative Automations patented technology for accurate dispensing of fluids and pastes.
The LV-1 is available in a wide range of sizes and styles for precision dispensing of volumes ranging from as small as 0.05 µl to 20 ml per shot. Typical dispense volume accuracy is + 2% or better. The LV-1 is designed to dispense materials ranging from 1 to 1,000,000 CPS The LV-1s’ can be used either singularly or in multi-component combinations to dispense several materials at a time.
Material can be supplied to the pump from either a syringe, reservoir or transfer pump under low pressure. The pump’s piston creates a high-pressure precision stroke to accurately execute a fast dispense.
Our positive displacement pump’s unique design enables the dispensing of filled materials without separating or changing the component ratio. The LV-1 positive displacement pump dispenses with extreme accuracy, even during changes in material viscosity or temperature.
For smaller dispense sizes, please see the SP-2 positive displacement pump.
Our innovative digital dispensing process provides our clients with new levels of speed, accuracy, and repeatability. Our True Volume™ positive displacement pump is capable of firing up to 90,000 precise deposits per hour to form high definition dots, lines, fills, and builds – all accurately shaped by our true piston positive displacement pump. Volumetric accuracy is ensured regardless of deposit size, viscosity, or temperature.
